SQL Joins Explained — A Visual Guide

💡 What is a SQL Join?

In SQL, joins are used to combine rows from two or more tables based on a related column. Understanding joins is essential for writing efficient queries and extracting meaningful insights from your data.

In this guide, we’ll walk through every type of SQL join using intuitive visuals and simple SQL syntax.

🔁 INNER JOIN

Returns only the matching records from both tables.

SELECT *
FROM A
INNER JOIN B ON A.key = B.key

📘 Think of it as the overlap in a Venn diagram.

◀️ LEFT JOIN

Returns all records from the left table (A), and the matching ones from the right (B).

SELECT *
FROM A
LEFT JOIN B ON A.key = B.key

⛔ LEFT ANTI JOIN

Returns records from A that have no match in B.

SELECT *
FROM A
LEFT JOIN B ON A.key = B.key
WHERE B.key IS NULL

▶️ RIGHT JOIN

Returns all records from the right table (B), and the matching ones from the left (A).

SELECT *
FROM A
RIGHT JOIN B ON A.key = B.key

⛔ RIGHT ANTI JOIN

Returns records from B that have no match in A.

SELECT *
FROM A
RIGHT JOIN B ON A.key = B.key
WHERE A.key IS NULL

🔄 FULL JOIN

Returns all records from A and B, matched where possible.

SELECT *
FROM A
FULL JOIN B ON A.key = B.key

🔍 FULL ANTI JOIN

Returns records from A and B that do not match each other.

SELECT *
FROM A
FULL JOIN B ON A.key = B.key
WHERE A.key IS NULL OR B.key IS NULL

🧠 Why Should You Learn SQL Joins?

• Essential for data analysis
• Widely used in ETL and reporting
• A core concept in data science and backend development

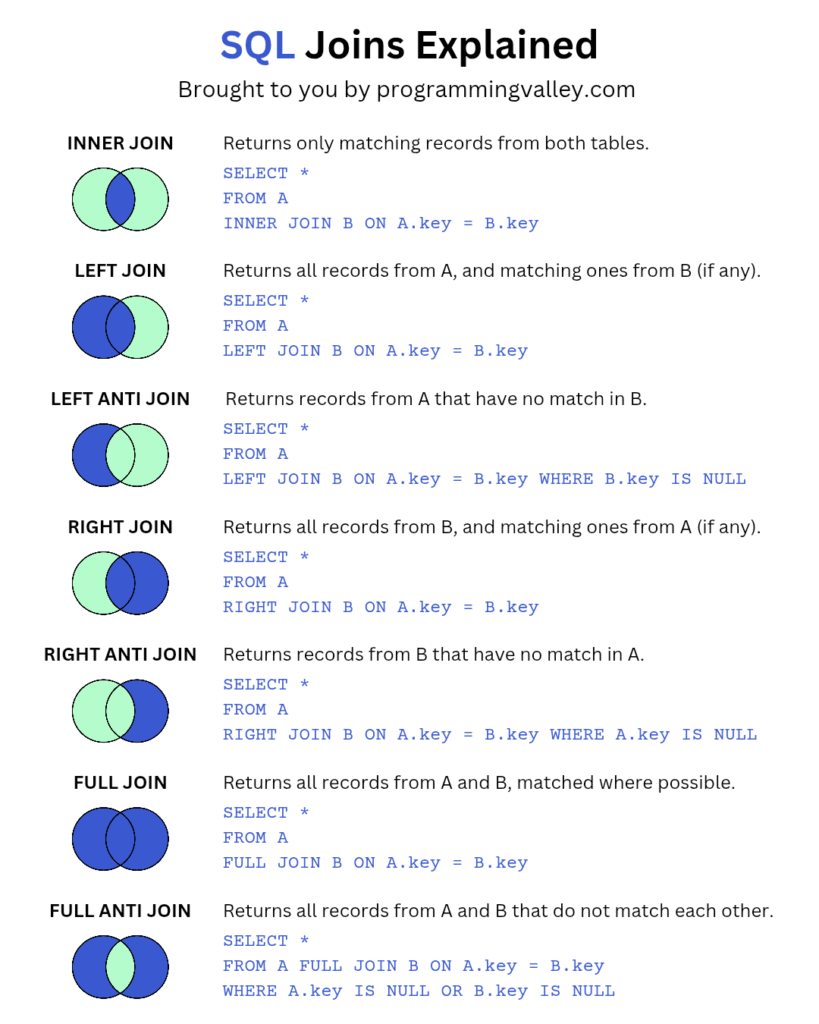

🔗 Bonus Tip: Save This Visual

This cheat sheet can be your quick reference whenever you’re writing SQL queries or practicing joins in interviews or projects.
